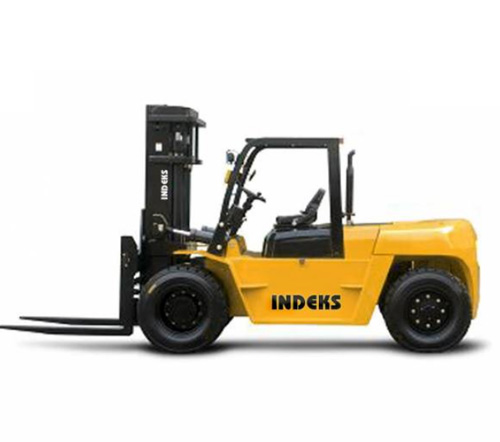

IND FD 20
|
| GENERAL |
| Fuel Type |
:
|
Diesel |
|
| Rated Capacity |
:
|
2.000 |
kg |
| Load Centre |
:
|
500 |
mm |
CHARACTERISTIC & DIMENSION
|
| Lifting Height |
:
|
3.000 |
mm |
| Free Lifting Height |
:
|
120 |
mm |
| Fork Size (LxWxH) |
:
|
1070 x 122 x 40 |
mm |
| Tilting Angle F/B （α°/β°） |
:
|
6° / 12° |
deg |
| Fork Overhang(Wheel centre to fork face) |
:
|
460 |
mm |
| Rear Overhang |
:
|
440 |
mm |
| Ground Clearance (Bottom of Mast) |
:
|
140 |
mm |
| All Dimensions |
Length to face of fork(without fork) |
:
|
2.500 |
mm |
| Overall Width |
:
|
1.150 |
mm |
| Mast Lowered Heght |
:
|
2.045 |
mm |
Mast Extended Height
(With Backrest) |
:
|
4.000 |
mm |
| Overhead guard Height |
:
|
2.070 |
mm |
| Turning Radius (Outside) |
:
|
2.180 |
mm |
| Min. Right Angle Stacking Aisle Width |
:
|
1.940 |
mm |
| PERFORMANCE |
| Speed |
Travel (Unladen) |
:
|
19 |
km/h |
| Lifting (Full Load) |
:
|
510 |
mm/h |
| Lowering (Full Load) |
:
|
450 |
mm/h |
| Max. Drawbar Pull (Full Load) |
:
|
17 (13.5) |
N |
| Max. Gradeability (Full Load) |
: |
20 |
% |
| CHASIS |
| Tyres |
Front |
:
|
7.00-12-12PR |
mm |
| Rear |
:
|
6.00-9-10PR |
mm |
| Tread |
Front |
:
|
980 |
mm |
| Rear |
:
|
970 |
mm |
| Wheelbase |
:
|
1.600 |
mm |
| WEIGHT |
| Selfweight |
:
|
3.350 |
kg |
Weight Distribution
(Full Load) |
Front |
:
|
4.756 |
kg |
| Rear |
:
|
594 |
kg |
Weight Distribution
(Unload) |
Front |
:
|
1.407 |
kg |
| Rear |
:
|
1.943 |
kg |
| POWER&TRANSMISSION |
| Battery (Voltage / Capacity) |
:
|
12 / 100 |
V/Ah |
Engine
Transmission
|
Model |
:
|
- |
|
| Manufactire |
:
|
Nissan / Yanmar (japan) |
|
| Rated Output / r.p.m |
:
|
33 / 2450 |
kw |
| Rated Torque / r.p.m |
:
|
136 - 150 / 1500 - 1700 |
N.m |
| Number of Cylinder |
:
|
4 |
|
| Bore x Stroke |
:
|
92 x 100 |
mm |
| Displacement |
:
|
2659 |
cc |
| Fuel Tank Capacity |
:
|
60 |
L |
| Type |
:
|
Powershift |
|
| Stage (FWD/ RVS) |
:
|
1 / 1 (2 / 2) |
